Conventional Rollers – Classical and Optimum Way for Calendering Process

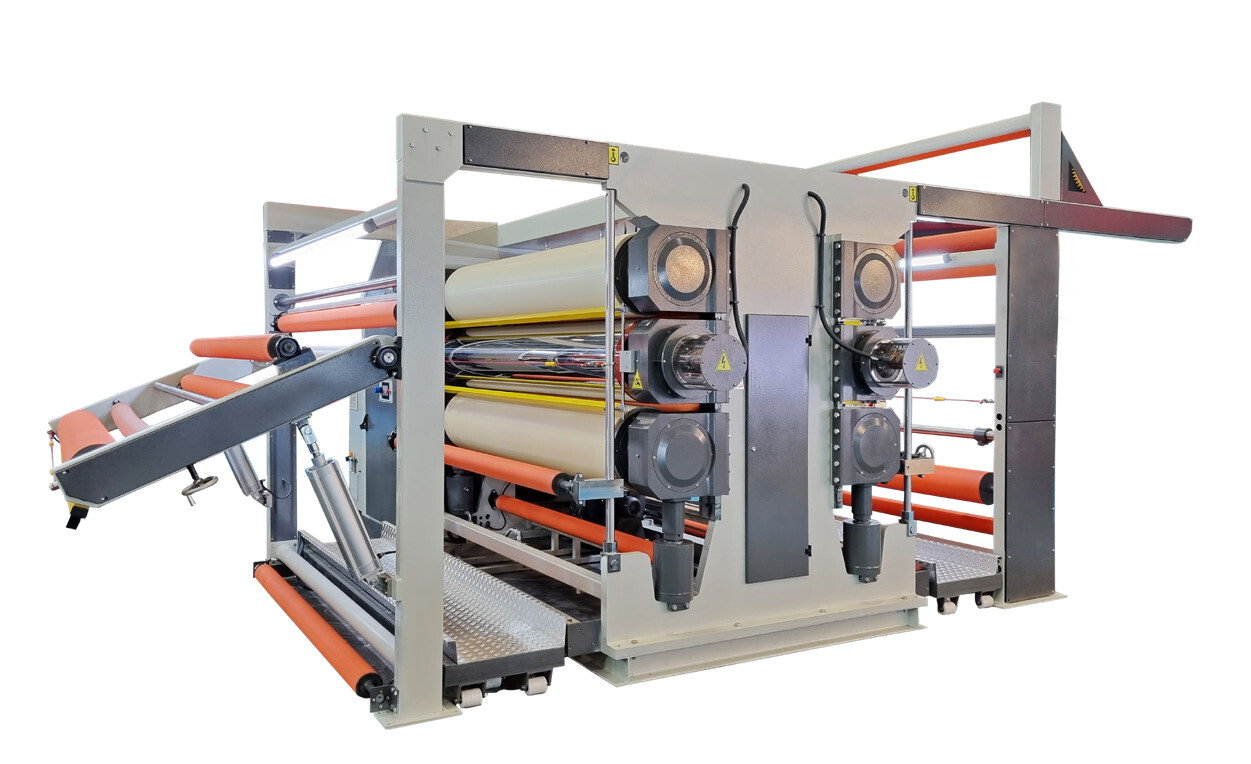

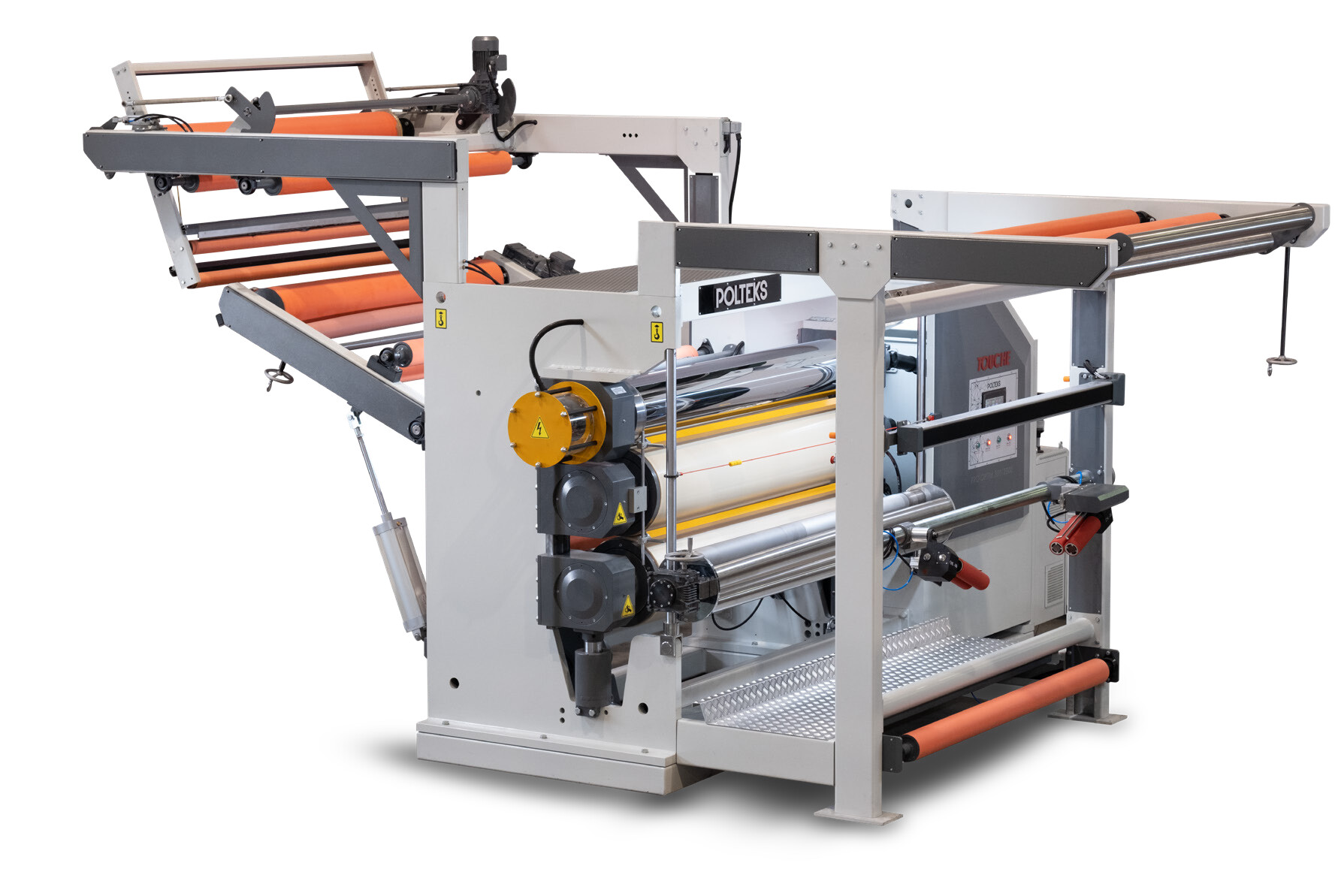

The Touche-Pro Calender Machine is a classic and cost-effective solution equipped with conventional rollers, designed for fabric producers operating with a single fabric type and fixed working pressure. While economical, it provides an efficient calendering process for consistent production requirements.
Featuring crowned rollers, the machine operates effectively within a low pressure range, making it ideal for manufacturers producing one type of fabric under a constant working pressure. The wide variety of available coatings and sleeve options for conventional rollers plays a critical role in defining the specific characteristics of the calendered fabrics. The Touche-Pro machine can be manufactured with up to 6 rollers, with customized designs according to customer requirements.
| Type Of Machine | OPTIM | DELUXE |
| Working Pressure (N/mm) | 300 N/mm | 450 N/mm |
| Working Speed (m/min) | 5 – 80 m/min | 5 – 100 m/min |
| Maximum Working Width (mm) | 4200 mm | 4200 mm |
| Maximum Working Temperature (°C) | 200 | 225 |
| Type of Sleeve | Polyamide / Composite / Paper / Cotton / Rubber | |
| Type of Inlet and Outlet Designs | Winder – Plaiter (Folder) – Air Shaft – Center-Driven Winder | |
| Type of Heating Systems | Electrical Resistance System – External Thermal Oil Unit – Thermal Oil Circulation System | |
We focus on providing our partners with the latest technologies and innovative solutions for a sustainable textile industry for the future.
